CNC

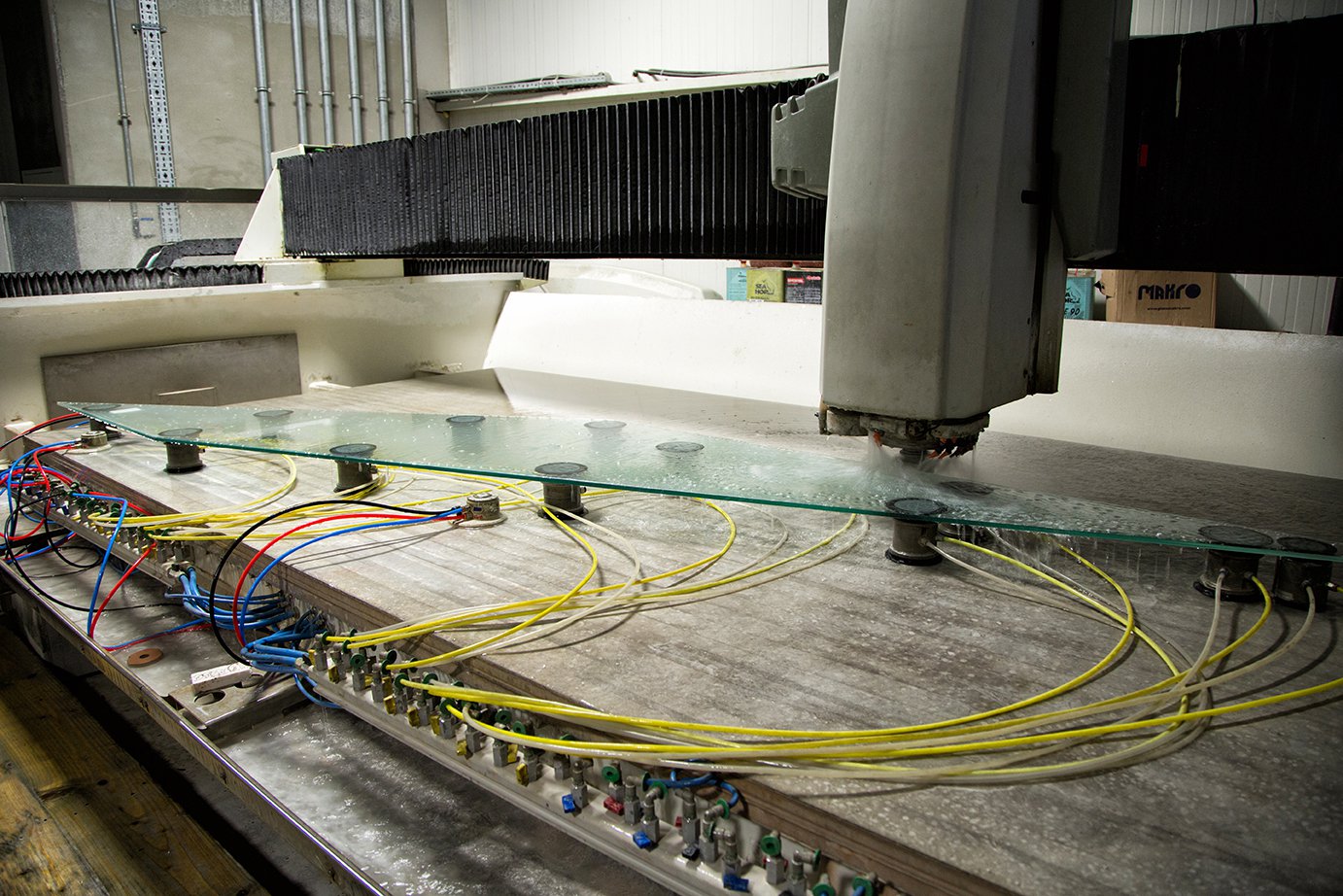

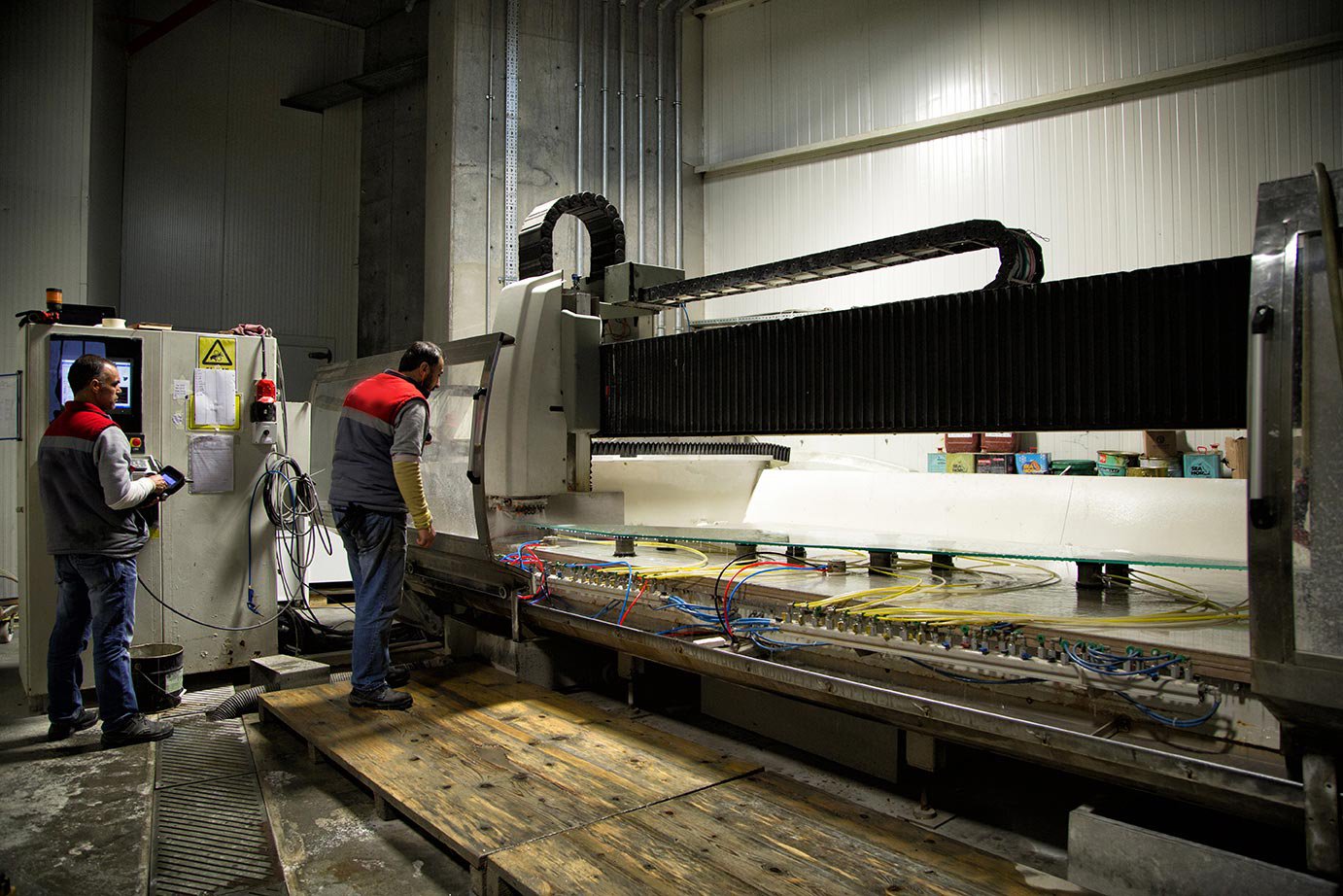

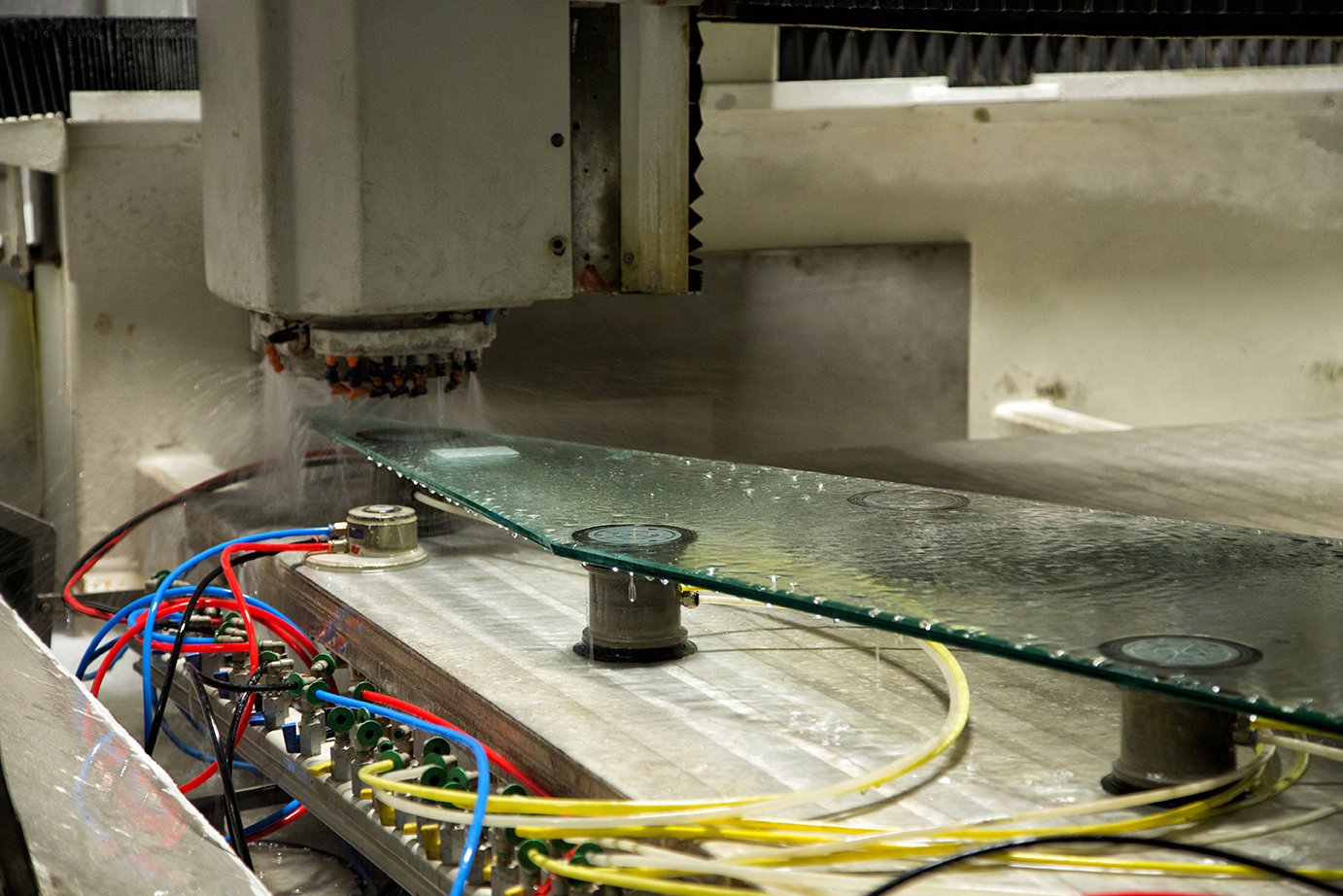

On Camglass’s horizontal and vertical CNC machining centres, notches, countersinks, cut-outs and shaped edges are applied to glass from 4 to 19 mm thick. Internal and external radii, fixing details and machining dimensions are prepared according to technical drawings.
Machine and tool selection is based on glass dimensions and machining geometry. For glass to be tempered or bent-tempered, CNC processing is completed before heat treatment. Laminated glass layers are processed according to a common technical drawing.
Overview
Precision Cutting
From straight lines to organic contours, a perfect fit for every design.
Single-Line Processing
Edge grinding and drilling on the same line, combining speed and safety.
Architectural Harmony
Faster installation and an exact fit.
Related Products
Tempered Safety Glass
Bent Tempered Glass
Laminated Glass
Applications
Hotels & Hospitality
Façade Systems
Custom-Shaped Panels
Interior Applications
Shopping Centres
Architectural Details
Technical Details
Line | Facility | Maximum Size | Minimum Size | Minimum radius |
|---|---|---|---|---|
CNC | Kırklareli | 2800 × 1500 mm | 150 × 300 mm | R13 / R1 mm |
Vertical CNC | Kırklareli | 6000 × 2600 mm | 300 × 600 mm | R13 / R1 mm |
Intermac CNC | Kıraç | 4100 × 2100 mm | 150 × 300 mm | R10 / R1 mm |
Vertmax vertical CNC | Kıraç | 5000 × 2500 mm | 350 × 510 mm | R13 / R1 mm |
Frequently Asked Questions
Which operations are done with CNC?
Horizontal and vertical CNC machining centres carry out notches, countersinks, cut-outs and shaped edge work. Internal and external radii, fixing details and machining dimensions are prepared according to technical drawings.
What glass thicknesses can be processed?
Glass 4–19 mm thick can be processed. Suitability is assessed according to the technical drawing and the tool to be used.
How is CNC done for tempered or laminated glass?
For glass that will be tempered or bent-tempered, CNC work is completed before heat treatment. Laminated glass layers are processed according to a common technical drawing.
